Model

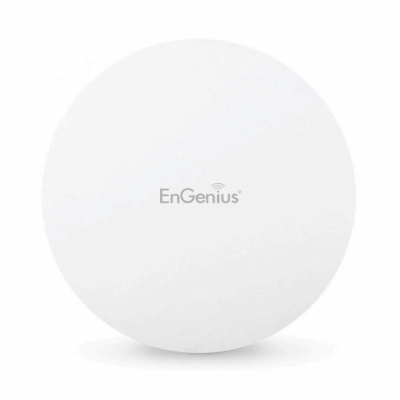

EAP1250

Standards

IEEE 802.11b/g/n on 2.4 GHz

IEEE802.11a/n/ac on 5 GHz

Processor

Qualcomm® 717 MHz Quad-Core CPU 4x ARM Cortex A7

Antennas

2 x 5 dBi Omni-Directional Integrated

Physical Interface

10/100/1000 Gigabit Ethernet Port

DC Jack

Reset Button

Kensington Security Slot

Power Source

Power-over-Ethernet: 802.3af Input

IEEE 802.11e Compliant Source

12VDC/1A Power Adapter

LED Indicators

Power (Green)

Ready to Config (Yellow)

Internet Connectio (Blue)

Internet Disconnection (Red)

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Access Point Mode (AP mode)

WDS: WDS AP, WDS Bridge Access Point

Control Features

Managed Mode (w/ezMaster/Neutron Switch)

Distance Control (ACK Timeout)

Multicast Supported

Wi-Fi Scheduler

Client Traffic Status

RADIUS Accounting (802.1x)

Power Save Mode (U-APSD Support)

CLI Support

HTTPS

Wireless Security

WEP Encryption 64/128/152 bit

WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)

Hide SSID in Beacons

MAC Address Filtering, Up to 32 MACs per SSID

Wireless STA (Client) Connected List

SSH Tunnel

Client Isolation

Temperature Range

Operating: 32º F~104º F (0º C~40º C)

Storage: -22º F~176º F (-30º C~80º C)

Humidity (non-condensing)

Operating: 90% or less

Storage: 90% or less

Dimensions & Weights

Weight: 0.41 lbs. (0.18 kg)

Diameter: 5.2” (132.08 mm)

Height: 1.47” (37.34 mm)

Package Contents

EAP1250 Indoor Access Point

T-Rail Mounting Kits

Ceiling & Wall Mount Screw Sets

Mounting Brackets

RJ-45 Ethernet Cable

Quick Installation Guide
