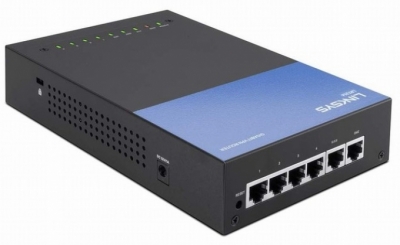

Business Gigabit VPN Router LINKSYS LRT214

-      Bao gồm 1 Port WAN GB, 4 port LAN GBit.

-      Hỗ trợ Quality of Service (QoS) bao gồm: Application-based priority on WAN port, Rate control or priority, upstream/downstream bandwidth can be configured per service...

-      Tính năng firewall mạnh giúp công ty bạn kết nối an toàn. Hỗ trợ 50 kết nối VPN Client cho người dùng di động và 50 kết nối Site-Site.

-      PERFORMANCE: IPsec VPN throughput (Mbps) 110, Maximum NAT throughput (Mbps) 900, Maximum concurrent connections 30,000.

-      Ensure high-speed, secure, and reliable network service for employees, whether they’re at the office or on the road.

-      Open VPN Server Support.

-      Integrated Firewall.

-      802.1q Support.

-      Intuitive Web Administrative Interface.

-      EasyLink VPN for simple VPN Setup.

-      Superior IP Sec Throughput.

OPENVPN SERVER SUPPORT

Allows OpenVPN clients running on employees’ laptops, smartphones, and tablets to connect to the offices using two-factor authentication.

INTEGRATED FIREWALL

Supports URL filtering and access rules that allow administrator to further regulate the traffic within the business network based on the services (i.e. TCP/UDP ports) and source/destination IP addresses.

802.1Q (VLAN TAGGING)

Provides segmentation between users in different SSIDs/VLANs. With inter-VLAN routing, Traffic traverses easily between VLANs.

INTUITIVE WEB ADMINISTRATIVE INTERFACE

Allows small business owners to deploy and manage the routers without professional IT staff onsite.

Technical specifications

-      Firewall:

o   SPI (Stateful Packet Inspection)

o   DoS (Denial of Service) prevention

o   Schedule-based access rules (50)

o   Web filtering (URL and keyword blocking)

o   Block Java, cookies, ActiveX, http proxy servers

o   IGMP proxy

o   UPnP

-      Site-to-Site VPN:

o   50 IPsec site-to-site tunnels

o   Split DNS over site-to-site tunnel

o   VPN backup for site-to-site tunnel

o   DPD (Dead Peer Detection)

o   Keep alive

o   NAT-traversal

-      Remote Access VPN:

o   OpenVPN

o   PPTP

o   Client-to-Site IPsec

-      NAT:

o   Gateway mode

o   Router mode

-      NAPT:

o   1-to-1 NAT (10)

o   Port forwarding (30)

o   Port triggering (30)

o   Port address translation (30)

o   DMZ host

-      DMZ Port:

o   DMZ Range

o   DMZ Subnet

-      802.1q VLAN:
5 tagged VLANs (supporting inter-VLAN routing, inter-VLAN access rules)

-      DHCP Server:
Supports multiple address pools, one pool per VLAN subnet

-      DNS:

o   DNS Proxy

o   DNS Local Database

-      Monitoring/Alerting:

o   Syslog

o   Email Alert

o   SNMP Trap

-      WAN Connection:

o   Dynamic IP

o   PPPoE

o   PPTP

o   L2TP

o   Static IP

o   Transparent Bridge

-      DDNS:

o   Dynamic DNS (DynDNS, 3322)

o   NOIP

o   ChangeIP

-      Routing:

o   Static

o   Routing Information Protocol (RIP) v1, v2 and RIP for IPv6 (RIPng)

-      IPv6:

o   DHCPv6-PD

o   6to4

o   Router Advertisement

-      Maintenance:

o   Configuration backup and restore

o   Dual configurations (startup and mirror)

o   Firmware upgrade

o   Diagnostics (ping and DNS name lookup)

o   Reboot

o   Factory defaults

-      Status and Statistics:

o   WAN connection status

o   VPN tunnel/user status

o   Port status and statistics

-      Ports:
One 10/100/1000 RJ45 WAN port, One 10/100/1000 RJ45 WAN/DMZ port, Four 10/100/1000 RJ45 LAN ports, OpenVPN for mobile platforms (iOS, Android), reset button

-      LEDs:
System, DIAG, WAN, DMZ. VPN, LAN 1–4

-      Port Management:

o   10/100/1000 Mbps

o   Auto negotiation

o   Half/Full duplex

-      Performance:

o   IPsec VPN throughput: 110 Mbps

o   Maximum NAT throughput: 900 Mbps

o   Maximum concurrent connections: 30,000

-      Dimensions (LxWxH):
191 x 130 x 40 mm

-      Weight:
722.2 grams (28.43 oz)

-      Power:
12V 1A

-      Operating Temperature:
0ºC to 40ºC (32ºF to 104ºF)

-      Storage Temperature:
0ºC to 70ºC (32ºF to 158ºF)

-      Operating Humidity:
10% to 85% non-condensing

-      Storage Humidity:
5% to 90% non-condensing

-      Mounting:

o   Wall

o   Desktop

-      VLAN Trunking:
VLAN trunking allowing connection to access points (with multiple SSIDs) and additional smart or managed switches.

-      Security Lock:
Kensington Lock

-      Regulatory Compliance:

o   FCC Class B,

o   CE Class B

-      Warranty and Support:
Limited Lifetime Warranty

-      Bandwidth Management:
Rate control allowing limiting upstream and downstream bandwidth per service and IP; Priority scheme allowing services mapped to 3 levels of priority

-      LEDs:
System, DIAG, WAN, DMZ. VPN, LAN 1-4

-      Reset Button:
Yes

-      UPnP:
Yes

-      Web-based Administrative Interface:

o   Browser supporting IE

o   Firefox

o   Safari

o   Setup wizard

o   Remote management over HTTPS
