Device Type

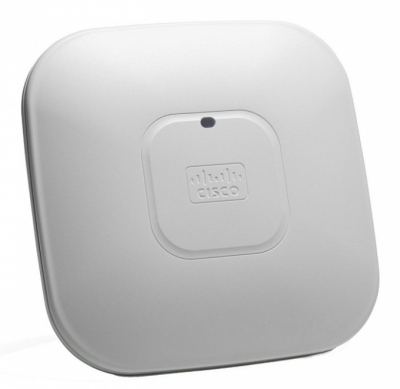

Radio access point

Expansion / Connectivity

Interfaces

1 x 1000Base-T - RJ-45

1 x management - RJ-45

Networking

Form Factor

External

Features

DFS support, MIMO technology, Wi-Fi Multimedia (WMM) support, CleanAir technology, Maximum Ratio Combining (MRC), ClientLink 2.0 technology

Connectivity Technology

Wireless

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n

Compliant Standards

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n

Data Transfer Rate

300 Mbps

Status Indicators

Status

Encryption Algorithm

AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2

Authentication Method

MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST

Frequency Band

2.4 GHz, 5 GHz

Miscellaneous

Compliant Standards

VCCI, ICES-003, EN 300.328, FCC Part 15.247, RSS-210, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, EN 300.489.1, EN 301.893, FCC Part 15.407, EN 60601-1-2, ARIB STD-T66, ARIB STD-T71, EN50155, CAN/CSA C22.2 No. 60950-1, EMI

Environmental Parameters

Min Operating Temperature

-20 °C

Max Operating Temperature

55 °C

Humidity Range Operating

10 - 90% (non-condensing)

Processor / Memory / Storage

RAM

256 MB

Flash Memory

32 MB

Dimensions

22.1 x 22.1 x 5.4 cm

Weight

1.22 kg
