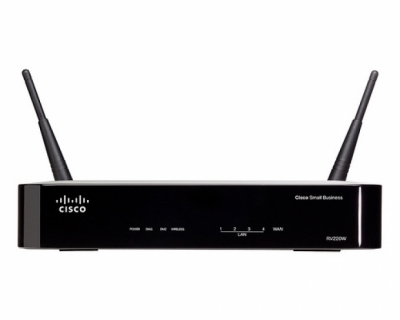

0979.863.893Wireless Network Security Firewall Cisco RV220W
Performance and Security for Small Offices
Get high-performance, highly secure, flexible, wired and wireless connectivity for your small office with the Cisco RV220W Wireless Network Security Firewall.
Connect easily to the Internet, to other locations, and to employees working remotely. With fast access to large files and multimedia applications, you can help your small office stay productive.
This easy-to-use wireless router features:
- High-performance Gigabit Ethernet connections, including a 4-port switch
- Built in, high-speed, selectable dual-band wireless-N access point
- IP Security (IPsec) and Secure Sockets Layer (SSL) VPN for flexible remote access
- Intuitive, browser-based device manager
- Support for Small Business QuickVPN software
- High-Performance, Highly Secure Connectivity for the Small Office
- The Cisco ® RV220W Network Security Firewall lets small offices enjoy secure, reliable, wired and wireless, broadband connectivity - to the Internet, other offices, and employees working remotely. This high-performance wireless router helps improve productivity by providing fast access to the large files and rich media applications your employees use every day.
- Designed to provide greater flexibility for highly secure, remote connections, the RV220W supports both IP Security (IPsec) and Secure Sockets Layer (SSL) VPN, often referred to as hybrid VPN. IPsec VPN enables other offices to connect just as if they were physically connected to the primary business network. SSL VPN, which allows secure connections through any web browser, is application-specific, offering a means of extending controlled access to business partners and others, without compromising critical data.
- To help further safeguard your network and data, the Cisco RV220W includes business-class security features and optional cloud-based Web filtering. Setup is simple, using a browser-based configuration utility and wizards.
- High-performance Gigabit Ethernet connections, internally and externally, plus a built-in wireless-N access point, speeds file transfers to improve productivity
- 4-port 10/100/1000 Mbps Gigabit Ethernet switch
- Selectable, dual-band wireless radio helps reduce interference to improve wireless performance
- Hybrid VPN (IPsec and SSL VPN) features enable secure access for other offices, employees working remotely, and business partners
- Proven firewall, support for separate virtual networks, and strong wireless security help protect the network and business assets
- Intuitive, browser-based device manager with setup wizards makes installation and use easy
|
Description |
Specification |
|
Standards |
• IEEE 802.11n, 802.11g, 802.11b, |
|
• 802.3, 802.3u |
|
|
• 802.1X (security authentication) |
|
|
• 802.1Q (VLAN) |
|
|
• 802.11i (Wi-Fi Protected Access [WPA2] security) |
|
|
• 802.11e (wireless quality of service [QoS]) |
|
|
• IPv4 (RFC 791), IPv6 (RFC 2460) |
|
|
• Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723) |
|
|
Network protocols |
• Dynamic Host Configuration Protocol (DHCP) server, DHCP relay agent |
|
• Static IP |
|
|
• Point-to-Point Protocol over Ethernet (PPPoE) |
|
|
• Point-to-Point Tunneling Protocol (PPTP) |
|
|
• Layer 2 Tunneling Protocol (L2TP) |
|
|
• Spanning Tree Protocol (STP) |
|
|
• Dynamic DNS (DDNS) (DynDNS, TZO) |
|
|
Routing protocols |
• Static |
|
• RIP v1, v2 |
|
|
NAT protocol |
• Port Address Translation (PAT) |
|
• Network Address Port Translation (NAPT), NAT traversal, one-to-one NAT |
|
|
• Session Initiation Protocol Application Layer Gateway (SIP ALG) |
|
|
IPv6 |
• Dual-stack IPv4 and IPv6 |
|
• 6-to-4 |
|
|
• Stateless address auto-configuration |
|
|
• DHCP v6 |
|
|
• Internet Control Message Protocol (ICMP) v6 |
|
|
Network edge (DMZ) |
Software configurable on any IP address |
|
VLAN support |
Port-based and 802.1q tag-based VLANs, inter-VLAN routing |
|
Number of VLANs |
16 active VLANs (1-4096 range) |
|
Security |
|
|
Firewall |
Stateful packet inspection (SPI) firewall, firewall rules |
|
Access control |
MAC-based access control, IP/MAC binding, wireless profiles |
|
Content filtering |
Static URL blocking, keyword blocking, approved URL |
|
Secure management |
HTTPS, username/password, X.509 v3 certificates |
|
802.1x supplicant |
Port-based RADIUS authentication (Extensible Authentication Protocol [EAP] MD5, Protected EAP [PEAP]) |
|
Certificates |
X.509 v3 certificates, certificate upload using PEM format |
|
VPN |
|
|
IPsec |
25 IPsec site-to-site tunnels |
|
QuickVPN |
25 QuickVPN tunnels for remote client access |
|
SSL VPN |
5 SSL VPN tunnels |
|
SSL VPN platforms |
Microsoft Windows 2000/XP/Vista 32 and 64-bit/Windows 7; Mac OSX 10.4+ |
|
PPTP |
10 PPTP tunnels for remote access |
|
Encryption |
Data Encryption Standard (DES), Triple Data Encryption Standard (3DES) and Advanced Encryption Standard (AES) encryption (128, 192, 256-bit) |
|
Authentication |
MD5/SHA1 authentication |
|
VPN pass-through |
PPTP, L2TP, IPsec |
|
Advanced VPN |
Dead Peer Detection (DPD), IPsec NAT traversal, Group VPN |
|
Quality of Service |
|
|
Prioritization types |
802.1p port-based priority on LAN port, application-based priority on WAN port |
|
Queues |
4 queues |
|
Performance |
|
|
NAT throughput |
800 Mbps |
|
Concurrent sessions |
6000 |
|
IPsec VPN throughput |
90 Mbps |
|
(3DES / AES) |
|
|
SSL VPN throughput |
25 Mbps |
|
Configuration |
|
|
Web user interface |
Simple browser-based device manager (HTTP/HTTPS) |
|
Management |
|
|
Management protocols |
Web browser, Simple Network Management Protocol (SNMP) version 1, 2c, 3, Bonjour, Universal Plug and Play (UPnP), Simple Network Time Protocol (SNTP) |
|
Event logging |
Local, syslog, email alerts, packet captures |
|
Upgradability |
Firmware upgradable through web browser, imported/exported configuration in text format |
|
Wireless |
|
|
Product Dimensions (W x H x D) |
8.66' x 1.54' x 6.69' |
|
220 mm x 39 mm x 170 mm |
|
|
Ports |
1 x 10/100/1000 Mbps Gigabit Ethernet WAN |
|
4 x 10/100/1000 Mbps Gigabit Ethernet LAN |
|
|
Power |
|
|
Spec/modulation |
• 802.11 b/g/a/n |
|
• Binary phase-shift keying (BPSK) |
|
|
• Quadrature phase-shift keying (QPSK), |
|
|
• Quadrature amplitude modulation (QAM): 16-QAM, 64-QAM |
|
|
Channels |
FCC: |
|
• 2.4 GHz: channels 1-11 |
|
|
• 5.15 - 5.25 GHz: channels 36, 40, 44, 48 |
|
|
• 5.725 - 5.825 GHz: channels 149, 153, 157, 161, 165 |
|
|
Channel selection |
Auto channel selection |
|
External antennas |
Two detachable antennae with reverse SMA connectors |
|
Internal antenna |
One fixed internal antenna |
|
Antenna gain in dBi |
Two omni-directional antennae with maximum 2 dBi gain |
|
One directional internal antenna with maximum 6.6 dBi gain |
|
|
Transmit power |
• 802.11b: 17.5 dBm +/- 1.5 dBm |
|
• 802.11g: 17.5 dBm +/- 1.5 dBm |
|
|
• 802.11a: 13.5 dBm +/- 1.5 dBm |
|
|
• 802.11n: 13.5 dBm +/- 1.5 dBm |
|
|
Receiver sensitivity |
• 802.11b: -90 dBm @11 Mbps |
|
• 802.11g: -74 dBm @54 Mbps |
|
|
• 802.11a: -71 dBm @54 Mbps |
|
|
• 802.11n: -66 dBm @270 Mbps (2.4 GHz) |
|
|
• 802.11n: -63 dBm @270 Mbps (5 GHz) |
|
|
Multiple SSIDs |
Supports multiple SSIDs, up to 4 separate virtual networks with separate wireless profiles |
|
Wireless VLAN map |
Supports SSID to VLAN mapping with wireless client isolation |
|
WMM |
Wireless multimedia with QoS (802.1e) |
|
U-APSD |
Wi-Fi Multimedia (WMM) power save |
|
Wireless Distribution System (WDS) |
Allows wireless signals to be repeated by up to 4 compatible repeaters |
|
Power |
12V 1A |
|
Certification |
FCC class B, IC |
- Bảo hành: 12 tháng.
