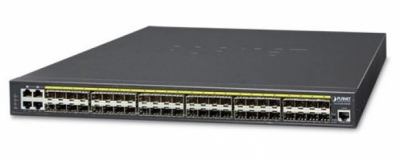

Thiết bị chia mạng Planet GS-5220-44S4C

0 Đánh giá / Thêm đánh giá
48-port 100/1000Mbps Switch PLANET GS-5220-44S4C -L2+/L4 48-Port 100/1000X SFP with 4 Shared TP Managed Switch, with Hardware Layer3 IPv4/IPv6 Static Routing. -Supporting both IPv6 and IPv4 protocols. -GS-5220-44S4C is a Layer 2+ Managed Gigabit Switch that features 44-Port 100/1000BASE-X + 4-Port Gigabit TP/SFP Combo, provides high-density performance and supports Hardware static Layer 3 routing in a 1U case. -With total 96Gbps high performance switch architecture, the GS-5220-44S4C can handle extremely large amounts of data in a secure topology linking to a data center / campus / telecom backbone or high capacity servers. -Each of the SFP slots supports Dual-Speed, 100BASE-FX and 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP transceiver modules according to the transmission distance or the transmission speed required to extend the network efficiently. -Address Table: 16K entries, automatic source address learning and ageing. - Power: 100~240VAC, 50/60Hz. -Power Consumption: 45 watts. -Dimensions: 440 x 300 x 44.5 mm, 1U height. -Weight: 3765g.
Lượt xem: 479      Đã có: 50 lượt mua thành công

Giá mới: 26.990.000 Đ

Đã tiết kiệm được: -26.990.000 VNĐ

Số lượng:

Đặc tính kỹ thuật

Copper Ports 4 port 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with Port-1 to Port-4
SFP/mini-GBIC Slots 48 100/1000BASE-X SFP interfaces
Compatible with 100BASE-FX SFP transceiver
Console 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 96Gbps
Throughput 71. 2Mpps@64Bytes
Address Table 16K entries, automatic source address learning and ageing
Shared Data Buffer 16M bits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 10K bytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Dimensions 440 x 300 x 44.5 mm, 1U height
Weight 3765g
LED System:
PWR (Green), SYS (Green), Fan 1 (Red), Fan 2 (Red)
10/100/1000T RJ45 Combo Interfaces (Port 1 to Port 4):
1000Mbps LNK/ACT (Green)
100Mbps LNK/ACT (Orange)
10Mbps LNK/ACT (OFF)
100/1000Mbps SFP Interfaces (Port 1 to Port 48)
1000Mbps LNK/ACT (Green)
100Mbps LNK/ACT (Orange)
Power Requirements 100~240VAC, 50/60Hz
Power Consumption 45 watts / 153 BTU/hr (max.)
ESD Protection 2KVDC
Layer 2 Management Functions
Port Configuration Port disable / enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable / enable
Port Status Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port Mirroring TX / RX / Both
Many-to-1 monitor
VLAN 802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/ static trunk
24 groups of 8-Port trunk supported
Spanning Tree Protocol STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
QoS Traffic classification based, Strict priority and WRR
8-level priority for switching:
- Port Number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/ToS field in IP packet
IGMP Snooping IGMP (v1/ v2/ v3) Snooping, up to 255 multicast groups
IGMP Querier mode support
MLD Snooping MLD (v1/ v2) Snooping, up to 255 multicast groups
MLD Querier mode support
Access Control List IP-based ACL / MAC-based ACL
Up to 256 entries
Bandwidth Control Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
Layer 3 Functions
IP Interfaces Max. 128 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols IPv4 hardware static routing
IPv6 hardware static routing
Management
Basic Management Interfaces Console / Telnet / Web browser / SNMP v1, v2c
Secure Management Interfaces SSH, SSL, SNMP v3
SNMP MIBs RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2
