Model

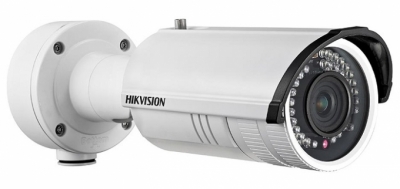

DS-2CD2642FWD-IZ

Image Sensor

1/3 inch Progressive Scan CMOS

Min. Illumination

0.01Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR

Shutter time

1/3 s to 1/10,000 s

Slow shutter

Support

Lens

2.8 - 12 mm @ F1.4, motorized lens (-Z), angle of view: 112°~33.8°

Lens Mount

φ14

Day& Night

IR cut filter with auto switch

Wide Dynamic Range

120dB

Compression Standard

Video Compression

H.264/ MJPEG/ H.264+

H.264 code profile

Main Profile

Video bit rate

32Kbps~16Mbps


Max. Image Resolution

2688 x 1520

Frame Rate

50Hz: 20fps (2688 x 1520), 25fps (1920 x 1080), 25fps (1280 x 720)

60Hz: 20fps (2688 x 1520), 30fps (1920 x 1080), 30fps (1280 x 720)

Image Enhancement

BLC/ 3D DNR/ ROI

Image Settings

Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

Day/Night Switch

Auto/Schedule/Triggered by Alarm In

Network

Network Storage

Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS)

Alarm Trigger

Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

Security

One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access

System Compatibility

ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

Interface

Communication Interface

1 RJ45 10/100Mbps Ethernet interface

General

Power Supply

12VDC ± 25%, PoE (802.3af Class3)

Power Consumption

Max. 5.5W (Max. 7.5W with ICR on)

Weather Proof

IP67

IR Range

Approx 20 to 30 meters

Dimensions

95 x 105 x 258.6 mm

Weight

1200g
